Development Board EMR - UB88xx

Product No.:: 001062
Shipping time:: ca. 3-5 days (abroad may vary)
Stock:: 46 pieces
RoHS:: yes
Country of origin:: CN
HS code:: 85340019

8,50 EUR

incl. 19% tax excl. Shipping costs

Add to wish list

Ask about product

Description

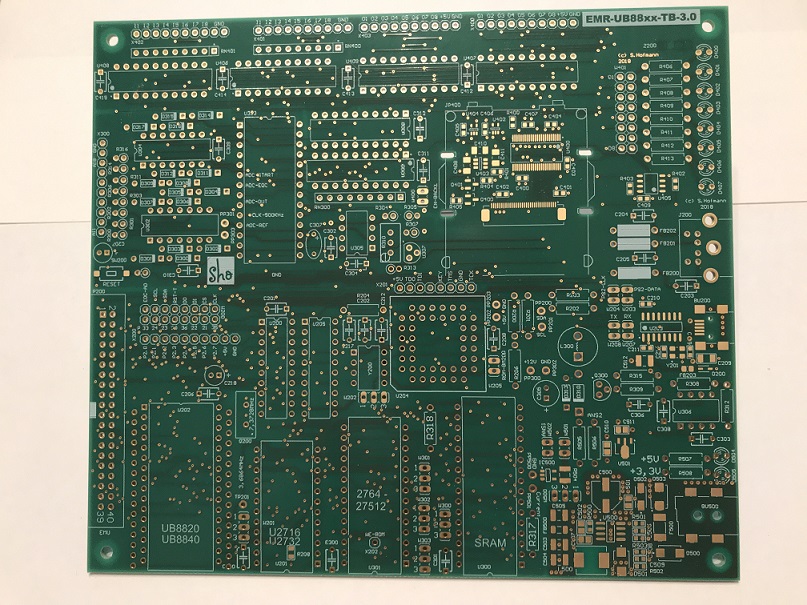

blank PCB 4 layers to build a development board EMR - UB8820 or UB8840.
This circuit board is supplied without accessories (electronic components).
Under Documents are all the data for assembling the PCB yourself.

Are you still missing appropriate electronic components for the assembly?
Ask us and we will make you an offer.

Documents

Schematic EMR UB8820 / EMRUB8840 (1.31 MB) :: Neue Version TB4 Rev-04 ! 24.01.2019

Bill of Materials TB4 (38.19 KB) :: Neue Version TB4 Rev-04 ! 24.01.2019

Software for UB88xx Board (381.92 KB) :: Software for UB8820/UB8840 Developmentboard.
Boot-ROM ( 2KB )
Grafiksoftware for TFT Display.
Driver for Ports, AD-Concerter, etc.
