BU8793 MIDI/ADPCM Sound Generator Development Board
SOLD OUT

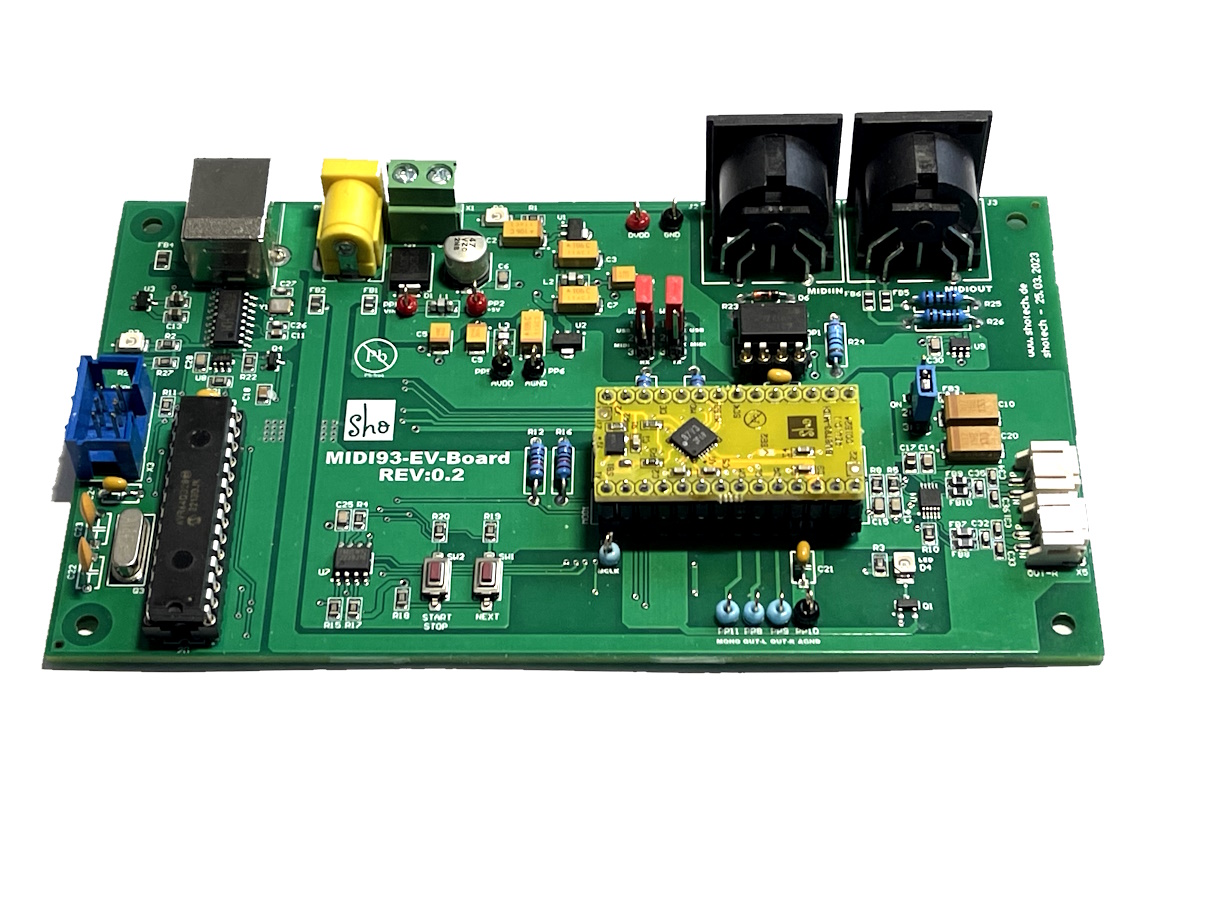

BU8793 MIDI/ADPCM Sound Generator Development Board
SMD pre-assembled development board for the "BU8793 MIDI/ADPCM Sound Generator Adapter Board"
The board is supplied with all SMD components.
All THT components (Through Hole Technology) are included in the kit for retrofitting. (loudspeakers are not included)
A demo software for generating the MIDI sound will be provided after purchase.
A microcontroller AVR64DD28 is used on the board.
We are currently working on the software (Windows to import the midi files) and embedded software for the microcontroller.
The circuit and assembly plan will also be published here soon.
( Update 16.08.2023 )
BU8793 MIDI93 EV beta-02.pdf
BU8793 Data.pdf
BU8793 Instruments.pdf
SMD pre-assembled development board for the "BU8793 MIDI/ADPCM Sound Generator Adapter Board"
The board is supplied with all SMD components.
All THT components (Through Hole Technology) are included in the kit for retrofitting. (loudspeakers are not included)
A demo software for generating the MIDI sound will be provided after purchase.
A microcontroller AVR64DD28 is used on the board.
We are currently working on the software (Windows to import the midi files) and embedded software for the microcontroller.
The circuit and assembly plan will also be published here soon.
( Update 16.08.2023 )
BU8793 MIDI93 EV beta-02.pdf BU8793 Data.pdf BU8793 Instruments.pdf
