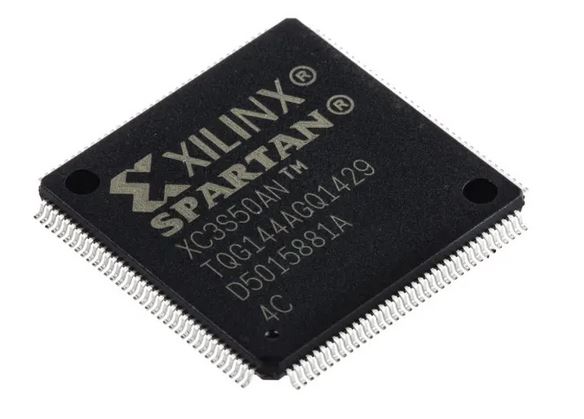

XC3S50AN-4TQG144C
The XC3S50AN-4TQG144C is a Spartan®-3AN FPGA combines the best attributes of a leading edge, FPGA with non-volatile technology across a broad range of densities. The family combines all the features of this plus leading technology in-system flash memory for configuration and non-volatile data storage. This is excellent for space-constrained applications such as blade servers, medical devices, automotive infotainment, telematics, GPS and other small consumer products. Combining FPGA and Flash technology minimizes chip count, PCB traces and overall size while increasing system reliability.
Spartan-3AN.pdf
- Integrated robust configuration memory
- Plentiful amounts of non-volatile memory available to user
- Robust 100K flash memory program/erase cycles
- 20-year Flash memory data retention
- Security features provide bit stream anti-cloning protection
- Buried configuration interface
- Flash memory sector protection and lockdown
- Suspend mode reduces system power consumption
- Retains all design state and FPGA configuration data
- Fast response time, typically less than 100μs
- Full hot-swap compliance
- Up to 24mA output drive
- 3.3V ±10% Compatibility and hot swap compliance
- 622+ Mbps Data transfer rate per I/O
- Abundant, flexible logic resources
- Densities up to 25344 logic cells
- Optional shift register or distributed RAM support
- TQFP-144
