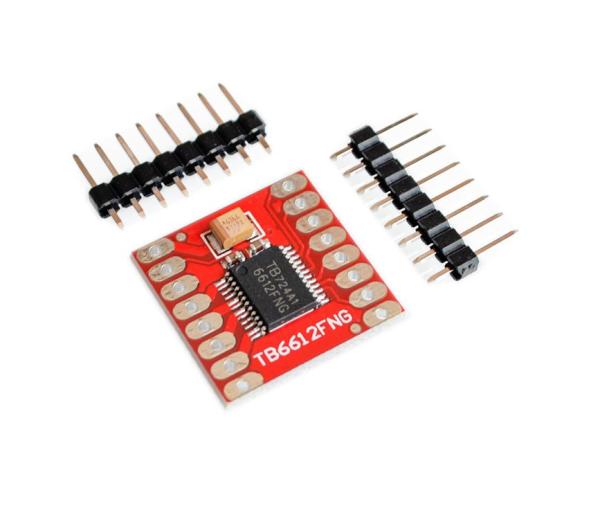

TB6612FNG MOTOR DRIVER BOARD
• Power supply voltage: VM = 15V max, VCC = 2.7–5.5V
• Output current: Iout = 1.2A (average) / 3.2A (peak)
• Standby control to save power
• CW/CCW/short-brake/stop motor control modes
• Built-in thermal shutdown circuit and low-voltage detecting circuit
• All pins of the TB6612FNG broken out to 0.1" spaced pins
• Filtering capacitors on both supply lines
• Pre-soldered header
TB6612FNG-data.pdf
TB6612FNG-schematic.pdf
TB6612FNG-app1.pdf
TB6612FNG-app2.pdf
• Output current: Iout = 1.2A (average) / 3.2A (peak)
• Standby control to save power
• CW/CCW/short-brake/stop motor control modes
• Built-in thermal shutdown circuit and low-voltage detecting circuit
• All pins of the TB6612FNG broken out to 0.1" spaced pins
• Filtering capacitors on both supply lines
• Pre-soldered header
TB6612FNG-data.pdf TB6612FNG-schematic.pdf TB6612FNG-app1.pdf TB6612FNG-app2.pdf
