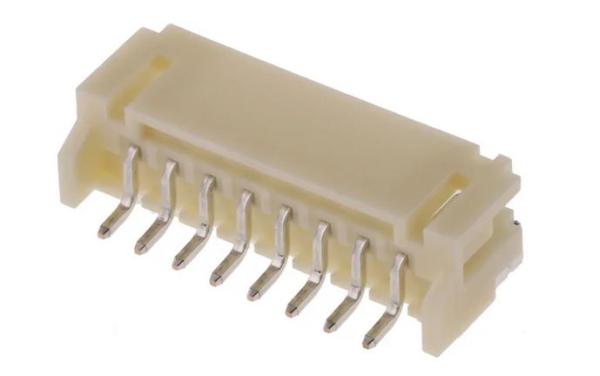

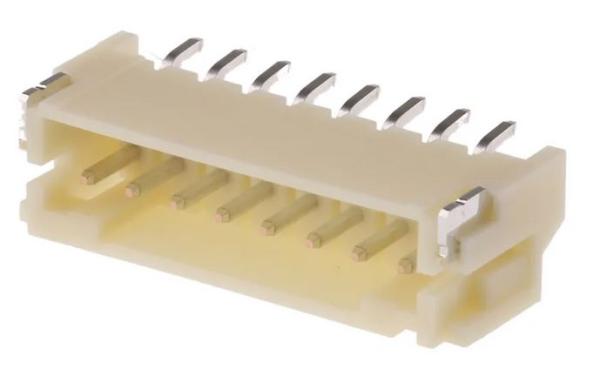

PH 2.0 8pin SMD 90° pin header
• Fully shrouded header
• Rated current of 2 A
• Circuit board holding mechanism
• SMD model
• Rated voltage of 100 V ac
• Temperature range from -25°C to 85°C
• Wire size from 30 to 24 AWG
• Number of contacts varies between 2 and 16 poles
• Contact material is brass
• Tinned contact
on Reel is 1000 pc.
comp. to S8B-PH-SM4-TB.
