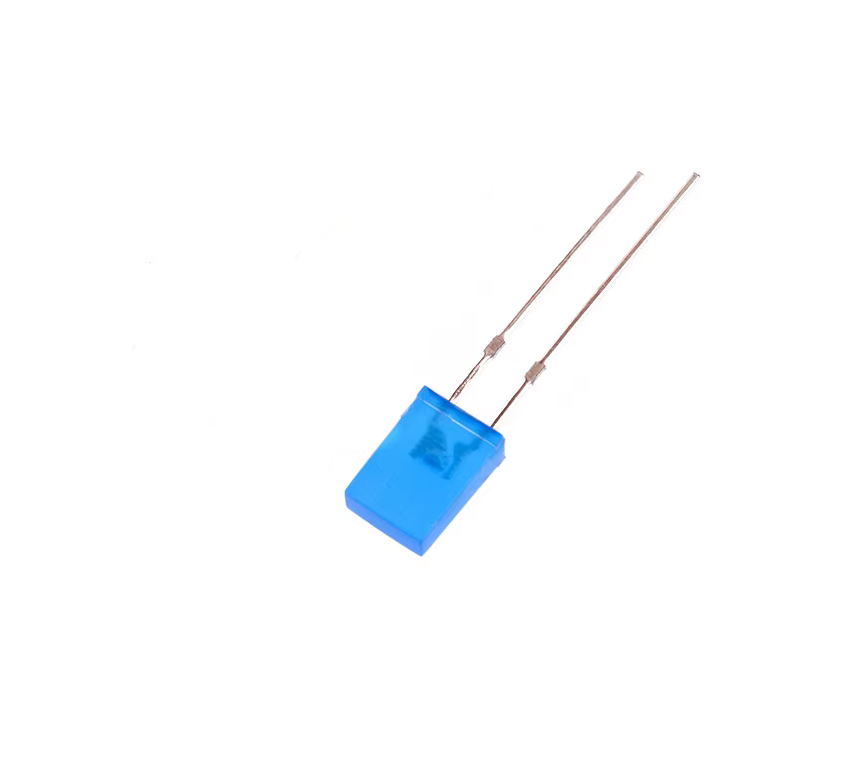

LED Rectangle Diffused Blue

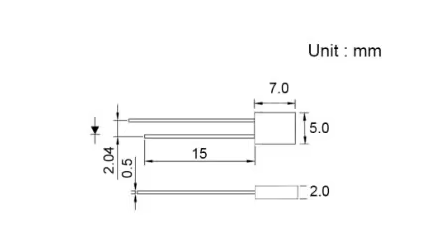

Package     Rectangle 2mm x 5mm x 7mm
Mounting    Through Hole
Off State Lens Color    Blue Diffused
Typ. Dominant Wavelength    460nm - 465nm
Viewing Angle    120 deg.
Min. Flux    200 mcd 300mcd
Test Current    20mA
Max. Forward current    20mA
Min. Forward Voltage    3.0V
Max. Forward Voltage    3.2V
Max. Pulsed Current    60mA
Min. Operating Temp.    -40 °C
Max. Operating Temp.    85 °C

Part Number: 257ECD4UB
