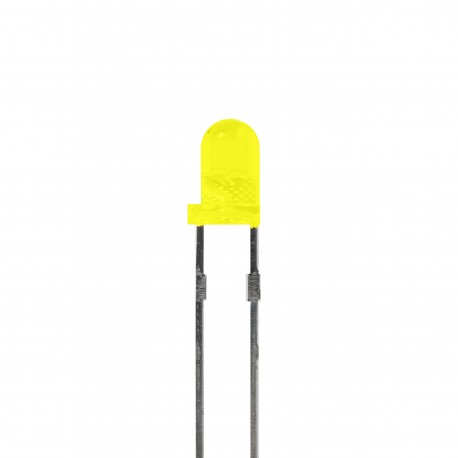

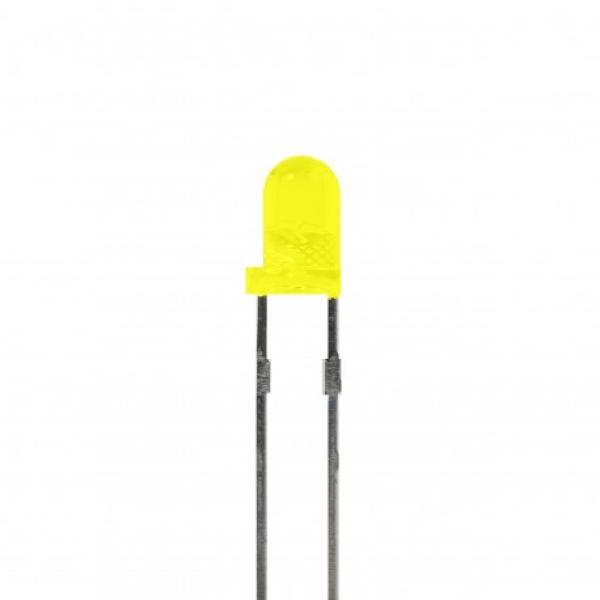

LED 3mm Diffused Yellow Round
LED 3mm Diffused Yellow Round
LED 3mm Diffused Yellow Round

LED 3mm Diffused Yellow Round

Product No.:
001322
Shipping time:
ca. 3-5 days ca. 3-5 days (abroad may vary)
Stock:
968 pieces
RoHS:
yes
Delivery:
Loose in bag
Country of origin:
CN
HS code:
85414010
0,10 EUR

incl. 19% tax excl. Shipping costs

Add to wish list
Ask about product
Description
Package    3mm Round
Mounting    Through Hole
Off  State Lens Color    Yellow Diffused
Typ. Dominant Wavelength    589nm
Viewing Angle    40 deg.
Min. Flux    100mcd
Typ. Flux    200mcd
Test Current    20mA
Max. Forward current    25mA
Min. Forward Voltage    1.7V
Max. Forward Voltage    2.4V
Max. Pulsed Current     40mA
Min. Operating Temp.    -40 °C
Max. Operating Temp.    85 °C

Part Number: 204-10UYD/S530-A3

  204-10UYD/S530-A3.pdf
