EPROM-Emulator-PCB-USB

EPROM emulator 2716 to 27128 via USB.

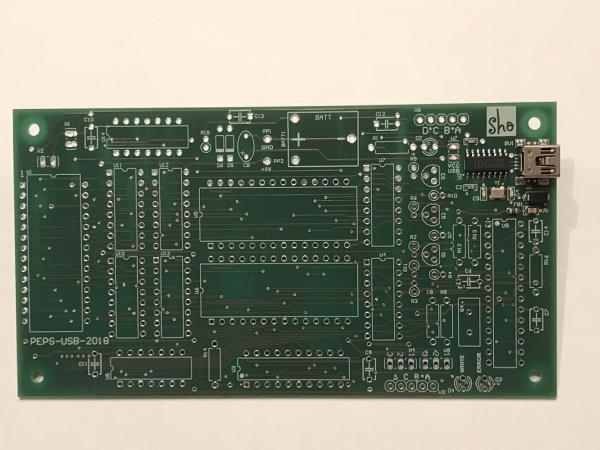

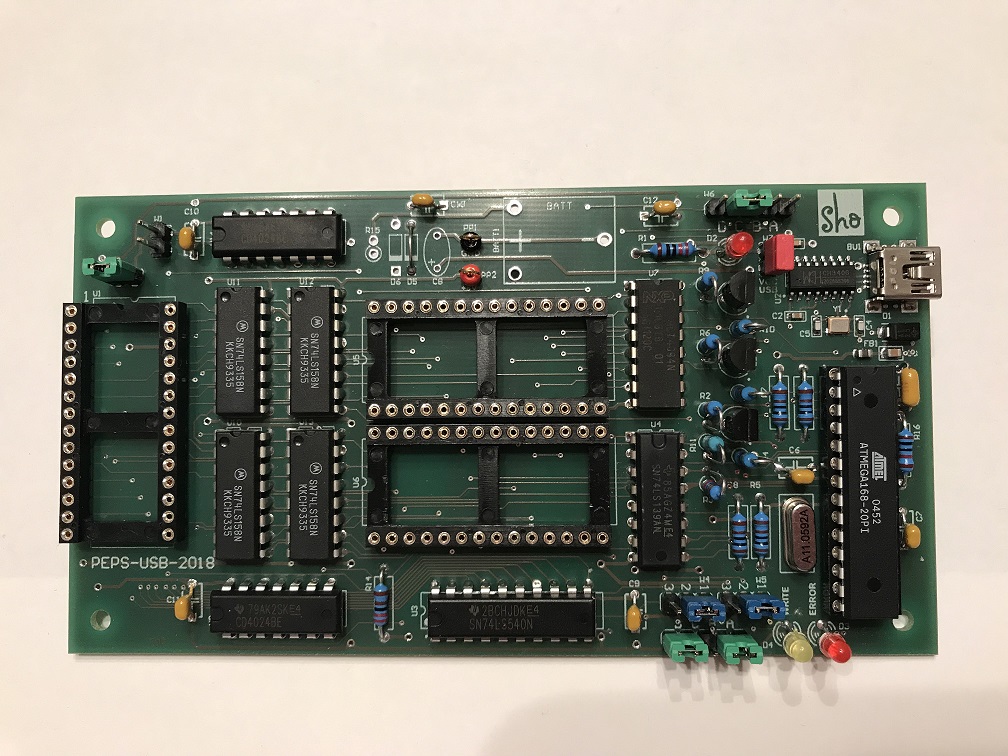

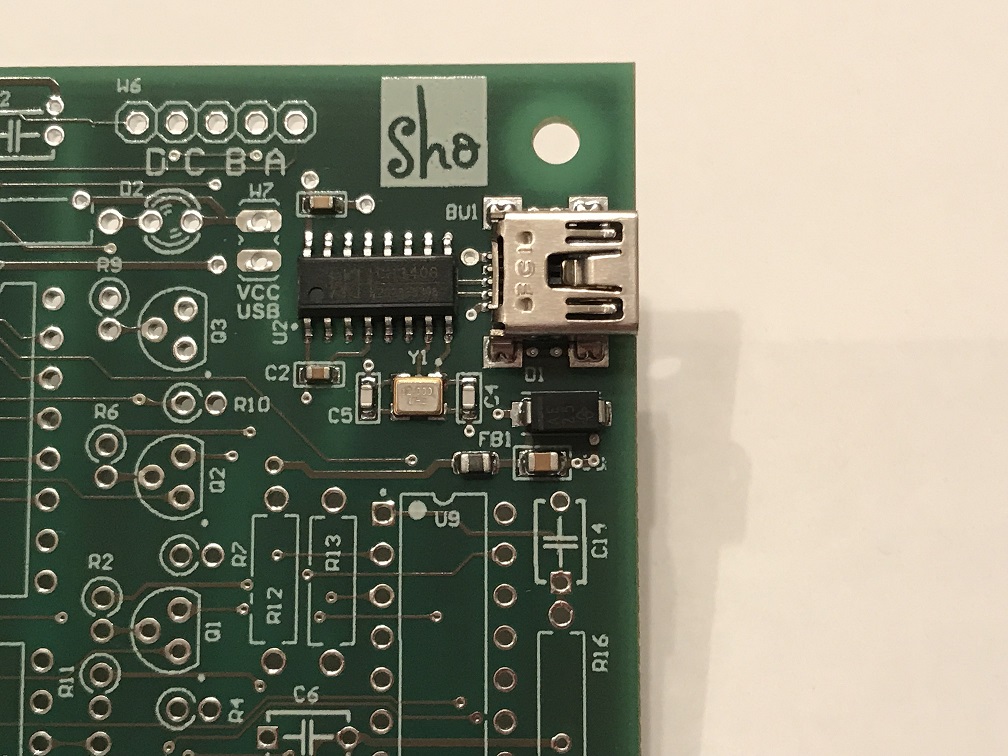

SMD populated board (USB interface equipped)

All electronic components according to parts list can be ordered here in the shop.

   EPROM-EMU-USB_V08.PDF   ( Improvement of the documentation update 19.11.2019)

   Software-EPROM-EMU_V08.zip    ( Software Hexupload und Firmware Mikrocontroller  20.11.2019 )
Current software for the EPROM emulator.
Firmware for microcontroller and upload software.
The following microcontrollers are supported: ATmega8, ATmega48, ATmega88, ATmega168 and ATmega328P.

For each microcontroller there is a firmware for the following crystal frequencies and baud rates:

ATmega8:
Crystal: 11,059200 MHz and 14,745600 MHz  Baudrate:  115200 1-StopBit, 230400 2-StopBit, 460800 2-StopBit
ATmega48:
Crystal: 11,059200 MHz, 14,745600 MHz, 18,432000 MHz  Baudrate: 115200 1-StopBit, 230400 2-StopBit, 460800 2-StopBit
ATmega88:
Crystal: 11,059200 MHz, 14,745600 MHz, 18,432000 MHz  Baudrate: 115200 1-StopBit, 230400 2-StopBit, 460800 2-StopBit
ATmega168:
Crystal: 11,059200 MHz, 14,745600 MHz, 18,432000 MHz  Baudrate: 115200 1-StopBit, 230400 2-StopBit, 460800 2-StopBit
ATmega328P:
Crystal: 11,059200 MHz, 14,745600 MHz, 18,432000 MHz  Baudrate: 115200 1-StopBit, 230400 2-StopBit, 460800 2-StopBit

Upload software now with BIN file and HEX file.
Bug fix for EMU controller. Bug Fix for Hexupload.
New version 20.11.2019.

  CH340-Driver.zip   ( driver for CH340 WIN, Linux, MAC )

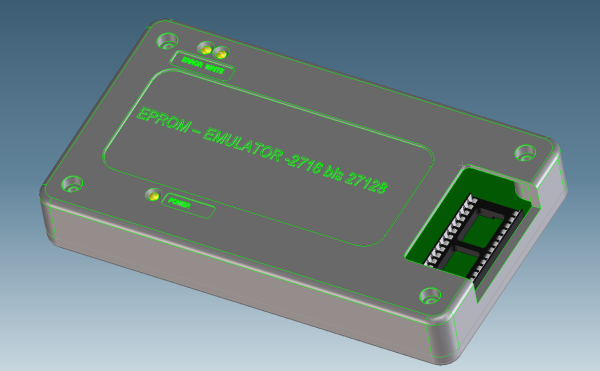

STL files for printing a suitable housing Rev2:
   EPROM-EMU-peps-housing-STL.zip
