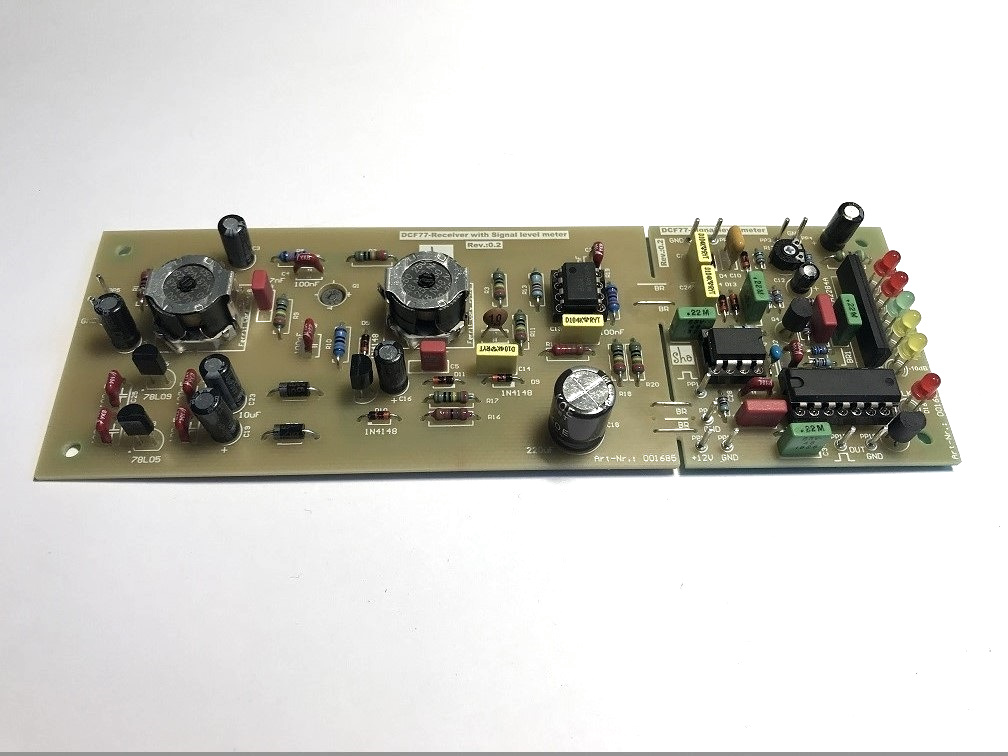

DCF77-Receiver Kit with Signal level meter
TOP
DCF77 receiver kit for receiving the time signal at 77.5KHz.
PCB 160 mm x 54 mm x 1.6 mm.
The kit contains all electronic components for building the receiver including the coil set with the coil fully wound (L1 and L2).
For optimal use, the active antenna article no. 001701 recommended.
The minimum distance to the receiver should be 1m.
Circuit diagram, assembly diagram and parts list are already available here.
Video des DCF77 Empfänger in Funktion
Bill of Materials-DCF_Empfänger_SHO(Variant of DCF_Empfänger_SHO-4,7nF-SMD).pdf
Bill of Materials-DCF_Empfänger_SHO(Variant of DCF_Empfänger_SHO-4,7nF-THT).pdf
DCF77-Receiver with Signal level meter-Variant-SMD.PDF
DCF77-Receiver with Signal level meter-Variant-THT.PDF
DCF77-Receiver Datasheet L2 Inductor.PDF ( Update 27.06.2025 )
