DCF77 A4510D Kit
SOLD OUT

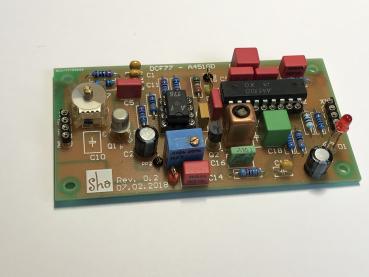

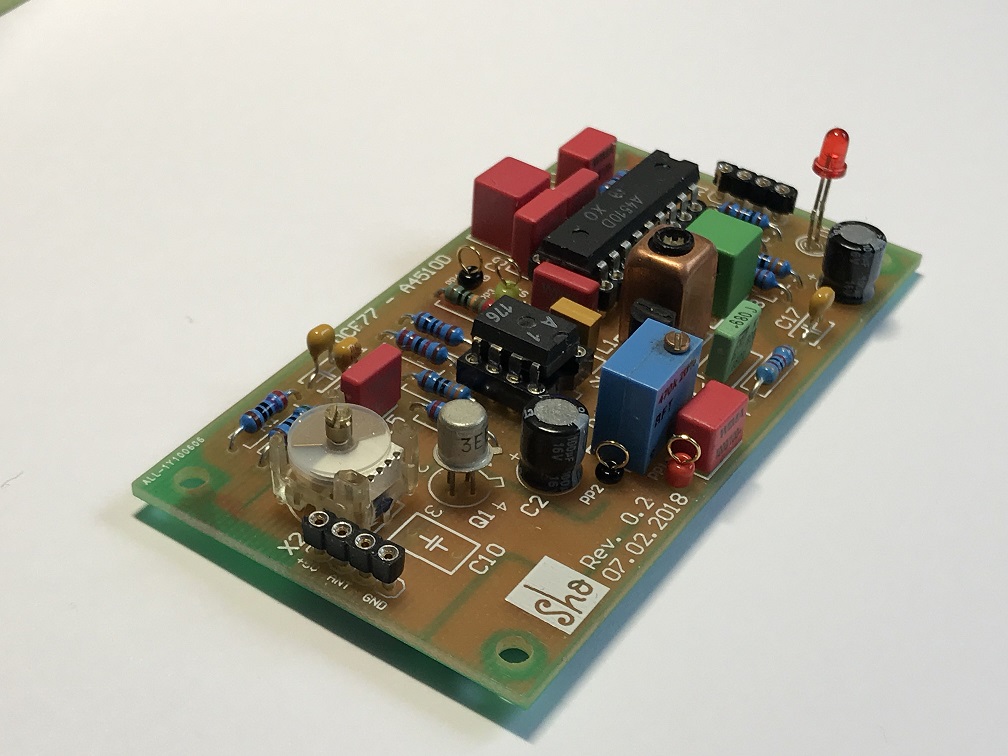

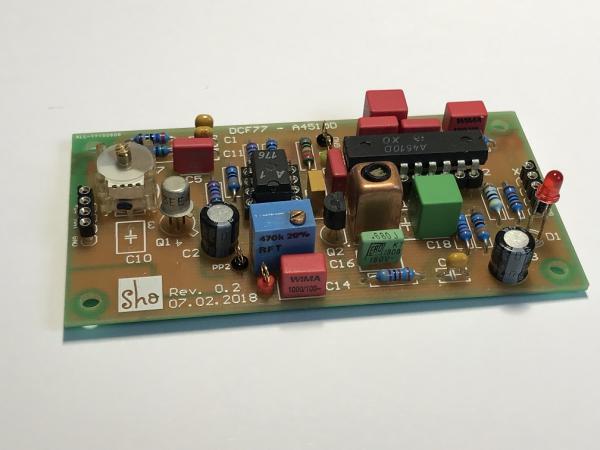

Kit DCF77 receiver with A4510D (TCA4510)
The kit contains all electronic components according to parts list.
bare printed circuit board and filter 3910 or 3911
A4510D, B176, Resistors, Capacitors, JFET, Transistor, Elkos, LED.
Documents with circuit, equipment, parts list.
Delivered without DCF77 antenna!
Attention new documentation! ( 04.05.2021 information about the ferrite antenna )
DCF-77-A4510-02-3910-Ref-03.PDF
DCF-77-A4510-02-3911-Ref-03.PDF
The kit contains all electronic components according to parts list.
bare printed circuit board and filter 3910 or 3911
A4510D, B176, Resistors, Capacitors, JFET, Transistor, Elkos, LED.
Documents with circuit, equipment, parts list.
Delivered without DCF77 antenna!
Attention new documentation! ( 04.05.2021 information about the ferrite antenna )
DCF-77-A4510-02-3910-Ref-03.PDF DCF-77-A4510-02-3911-Ref-03.PDF
- Schematic assembly parts list with filters 3911 (144.35 KB)
- Schematic assembly parts list with filters 3910 (144.29 KB)
