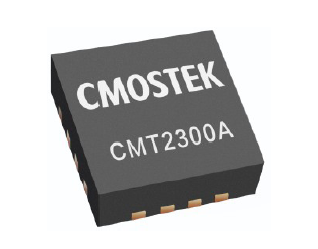

CMT2300AW-EQR

Product No.:: 000925
Shipping time:: Not available (abroad may vary)
Stock:: pieces
RoHS:: yes
Delivery:: cut tape
Country of origin:: CN
HS code:: 85423190

Sliding scale prices

1-9 units: per 1,75 EUR
10-24 units: per 1,55 EUR
> 24 units: per 1,33 EUR

This product ist not available.

1,75 EUR

incl. 19% tax excl. Shipping costs

Add to wish list

Ask about product

Description

Description

4-wire SPI 213-960Mhz RF Transceiver

Frequency Range: 213 to 960 MHz
Modulation: OOK, (G)FSK ºÍ(G)MSK
Data Rate: 0.5 to 250 kbps
Sensitivity: -120 dBm at 2.4 kbps, FRF = 433.92 MHz
   - 109 dBm at 50 kbps, FRF = 840 MHz
   - 109 dBm at 50 kbps, FRF = 920 MHz
Voltage Range: 1.8 ÖÁ3.6 V
Tx Current: 27 mA @ 13 dBm, 920 MHz, FSK
Rx Current: 6.9 mA @ 433.92 MHz, FSK
Support Super Low Power Mode
Sleep Current
- 300 nA when sleep timer is off
- 800 nA when sleep timer is on
4-wire SPI Interface
Support Direct Mode and Packet Mode
Configurable Packet Handler and 64-Byte FIFO
Manchester, Data Whitening and Forward Error Correction
16 Pin QFN 3x3 Package

This product is similar to:

CMT2300AW RF-DK

EVB boards CMT2300AW
Development kit for CMT2300AW

129,00 EUR
