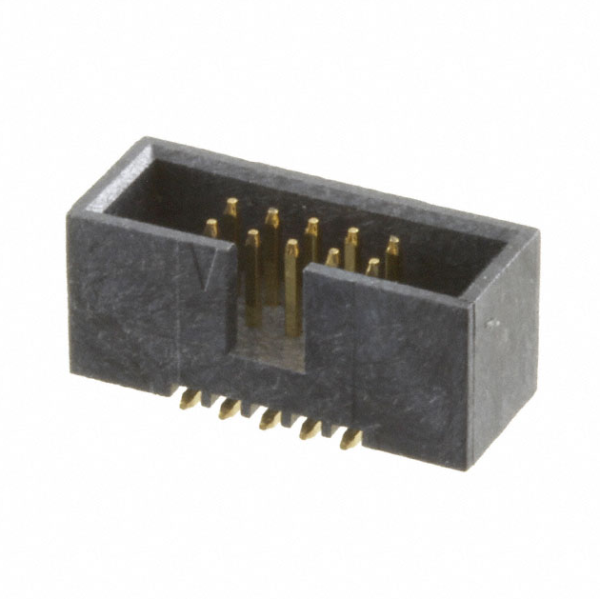

Wannenstecker-SMD, 2 x 5 pol., RM 1.27, vergoldet
Wannenstecker-SMD, 2 x 5 pol., RM 1.27, vergoldet
Isulator: PBT+30% Glass Fiber ( UL94V-0 )
Contakt: Phosphor Bronze T=0.3
Contakt Plating: Gold over Nickel
Current Rating: 1A AC,DC
Voltage Rating: 250V AC,DC
Operations Temperature: -40 … +105 °C
Isulations Resitance: 1000 MOhm
Contakt resistance 30m Ohm
box-header-smd-1.27mm.pdf
