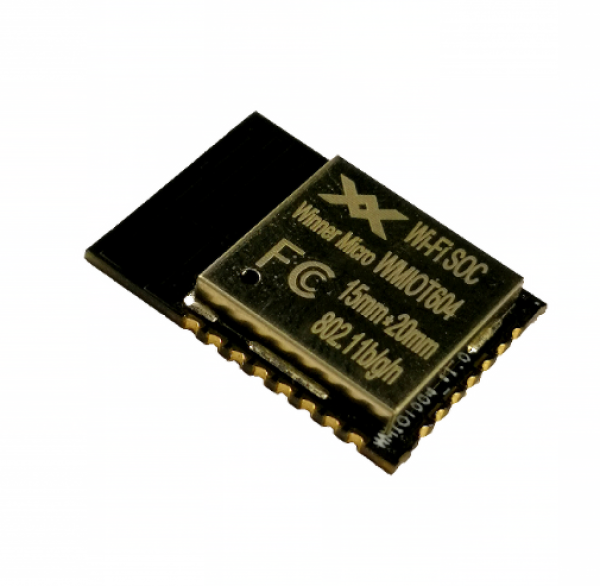

W600 WiFi Module

Art.Nr.:: 001359
Lieferzeit:: ca. 3-5 Tage (Ausland abweichend)
Lagerbestand:: 193 Stück
RoHS:: ja
Lieferung:: stück
Herkunftsland:: CN
Zolltarifnummer:: 85176200

Staffelpreise

1-3 Stk.: je 3,65 EUR
4-9 Stk.: je 3,35 EUR
10-24 Stk.: je 3,00 EUR
> 24 Stk.: je 2,90 EUR

3,65 EUR

inkl. 19% MwSt. zzgl. Versand

Auf den Merkzettel

Frage zum Produkt

Beschreibung

Interface
• This SoC integrates Cortex-M3 CPU, Flash, RF Transceiver, CMOS PA, BaseBand ( W600-A800 ).

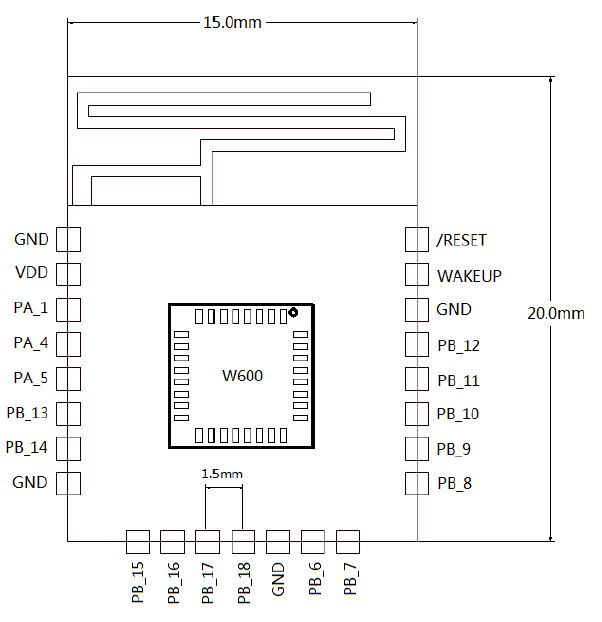

• 15 mm x 20 mm
• stamp hole interface, spacing 1.5mmm
• Integrated 2 UART interface, support RTS/CTS, baud rate: 1200bps~2Mbps
• Integrated one high speed SPI controller, operating frequency: 0~50MHz
• Integrated PWM controller, max output/input frequency 20MHz
• Integrated I²C controller
• Integrated I²S controller
• Integrated GPIO controller

Wi-Fi

• Support IEEE802.11 b/g/n
• Support frequency range: 2.4~2.4835 GHz
• Support Wi-Fi WMM/WMM-PS/WPA/WPA2/WPS
• Support Wi-Fi Direct
• Support EDCA channel access
• Support 20/40M bandwidth
• Support STBC, Greenfield, Short-GI and reverse transmission
• Support RIFS interframe space
• Support AMPDU、AMSDU
• Support IEEE802.11n MCS 0~7, MCS32, transmission rate is up to 150Mbps
• Support Short Preamble in 2/5.5/11Mbps
• Support HT-immediate Compressed Block Ack, Normal Ack, No Ack
• Support CTS to self
• Support STA/AP/AP+STA function
• Support up to 32 multicast networks with different encryption methods in BSS
• As AP in BSS, the sum of sites and groups is up to 32 and in IBSS is up to 16

Others

• Programmable GPIO control signals
• Support AT+ instruction protocol(UART interface) base on ASCII
• Support network protocol: TCP/UDP/ICMP/DHCP/DNS/HTTP
• Support DHCP Server, DNS Server
• Support extensible WEB server
• Support firmware on line update

libraries for Layoutsystem
winner-microelectronic.lbr ( Eagle Lib )
winner-micro.PcbLib ( Altium PCB-Lib )
winner-micro.SchLib ( Altium Schematic Lib )
