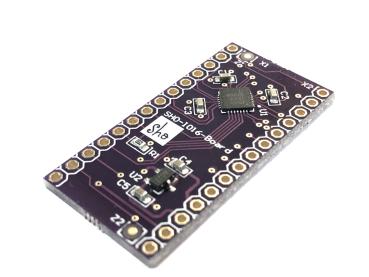

SX1503I091TRT
SOLD OUT

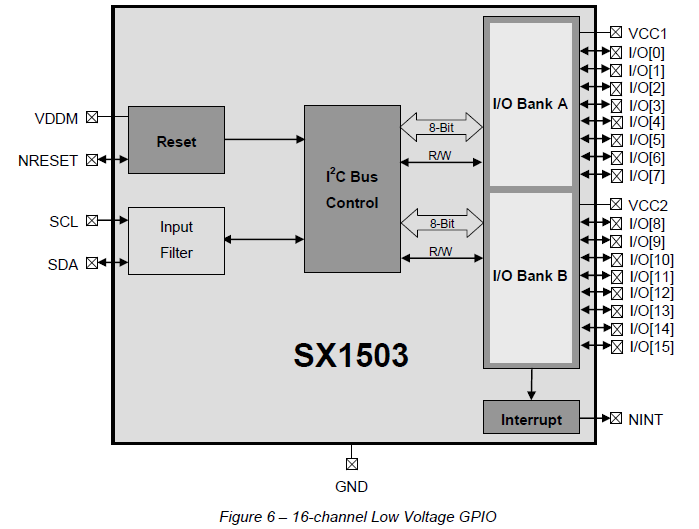

Schnittstelle - I/O-Erweiterer 16 CHANNEL HIGH VOLTAGE GPIO
16 channel of I/Os
True bi-directional style I/O P
Programmable Pull-up/Pull-down P
Push/Pull outputs
• 1.2V to 5.5V independent operating voltage for all supply rails (VDDM, VCC1, VCC2)
• 5.5V compatible I/Os, up to 24mA output sink (no total sink current limit)
• Fully programmable logic functions (PLD)
• 400kHz 2-wire I2C compatible slave interface
• Open drain active low interrupt output (NINT) Bit maskable Programmable edge sensitivity
• Power-On Reset and reset input (NRESET)
• Ultra low current consumption of typ. 1uA
sx150x.pdf
SX1503I091TRT_RoHS.pdf
16 channel of I/Os
True bi-directional style I/O P
Programmable Pull-up/Pull-down P
Push/Pull outputs
• 1.2V to 5.5V independent operating voltage for all supply rails (VDDM, VCC1, VCC2)
• 5.5V compatible I/Os, up to 24mA output sink (no total sink current limit)
• Fully programmable logic functions (PLD)
• 400kHz 2-wire I2C compatible slave interface
• Open drain active low interrupt output (NINT) Bit maskable Programmable edge sensitivity
• Power-On Reset and reset input (NRESET)
• Ultra low current consumption of typ. 1uA
sx150x.pdf SX1503I091TRT_RoHS.pdf
