MB86277PMCR-GS-BNDE1
MINT"Graphic LTB

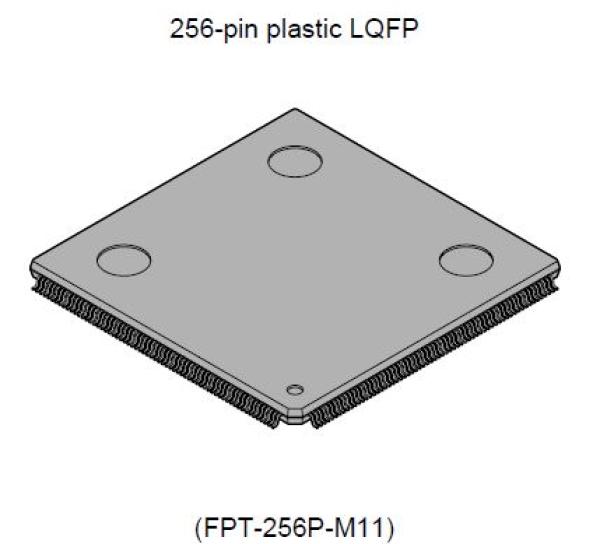

256-pin plastic LQFP
P-LFQFP256-28´28-0.40
Graphics Controller
CMOS 0.18μm technology
Internal and memory frequency : 100MHz (generated by on-chip PLL)
Base-clock for display clocks : 400.9MHz (generated by on-chip PLL)
Display resolutions typically from 320x234 up to 1024x768
6 layers of overlay display (windows)
Alpha Plane and constant alpha value for each layer
Digital Video input (various formats including YUV)
Video Scaler (down scaling)
RGB digital output (8bit x 3)
RGB Analog Output
Built-in alpha blending, anti-aliasing and chroma-keying
Rendering Engine for various kinds of 2D graphic acceleration functions
Texture Mapping Unit for 2D polygon support up to 4096x4096 textures
Bit-Blt Unit for transfers up to 4096x4096 areas
Alpha Bit-Blt and ROP2 functions
External 32-bit SDRAM interface for up to 64MB graphic memory
Parallel host interface (FR,SH3,SH4,V850,SparcLite etc)
Internal and external DMA support
I2C Master interface
Supply voltage 3.3V (I/O), 1.8V (Internal)
LQFP-256 Package
Typical power consumption < 1.0W (estimated)
Temperature range -40..+85 °C
hm-mb86277-rev1.0b.pdf
fpt-256p-m11.pdf
256-pin plastic LQFP
P-LFQFP256-28´28-0.40
Graphics Controller
CMOS 0.18μm technology
Internal and memory frequency : 100MHz (generated by on-chip PLL)
Base-clock for display clocks : 400.9MHz (generated by on-chip PLL)
Display resolutions typically from 320x234 up to 1024x768
6 layers of overlay display (windows)
Alpha Plane and constant alpha value for each layer
Digital Video input (various formats including YUV)
Video Scaler (down scaling)
RGB digital output (8bit x 3)
RGB Analog Output
Built-in alpha blending, anti-aliasing and chroma-keying
Rendering Engine for various kinds of 2D graphic acceleration functions
Texture Mapping Unit for 2D polygon support up to 4096x4096 textures
Bit-Blt Unit for transfers up to 4096x4096 areas
Alpha Bit-Blt and ROP2 functions
External 32-bit SDRAM interface for up to 64MB graphic memory
Parallel host interface (FR,SH3,SH4,V850,SparcLite etc)
Internal and external DMA support
I2C Master interface
Supply voltage 3.3V (I/O), 1.8V (Internal)
LQFP-256 Package
Typical power consumption < 1.0W (estimated)
Temperature range -40..+85 °C
hm-mb86277-rev1.0b.pdf fpt-256p-m11.pdf
