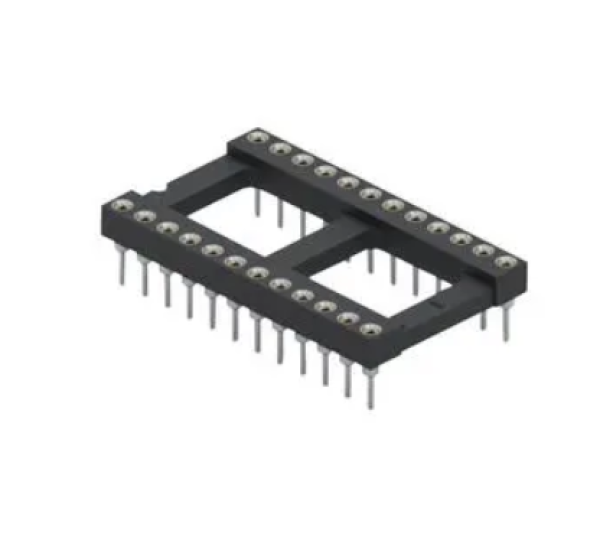

DIL Präzisionsfassung 24pol. 15.24mm

MATERIAL
1.Pin(outer sleeve): Brass, machined CuZn38Pb2
2.Clip(contact 4 finger): Beryllium copper, heat treated
3.Plating(outer sleeve):  2um/80u"nickel, 5um/200u"
4.Plating(contact):  2um/80u"nickel, Gold flash or 10u", 30u" Gold
5.Insulator Material: Glass filled PBT, UL94V-0 Black
ELECTRICAL
1.Current Rating: 3Amps/contact max.
2.Contact Resistance: 4mΩ/contact max.
3.Insulation Resistance: ≥10000MΩ at 500VAC
4.Operating Voltage: 100 VRMS/150VDC
MECHANICAL
1.Average Insertion force with steel pin of∅0.43mm/0.017": <250g
2.Average Withdrawal force with steel pin of∅0.43mm/0.017": >50g min.
3.Mechanical life cycle: 200 min.
4.Operation Temperature: -40°C to +105°C
5.Wave Soldering temperature: +245°C, 5-10s max

PN: AR24-HZL-TT

   ARxx-HxL-TT.pdf
