DCF-1060N-MAS ( 77,5 KHz ) Receiver module with MAS6181B
DCF-1060N-MAS ( 77,5 KHz ) Receiver module with MAS6181B

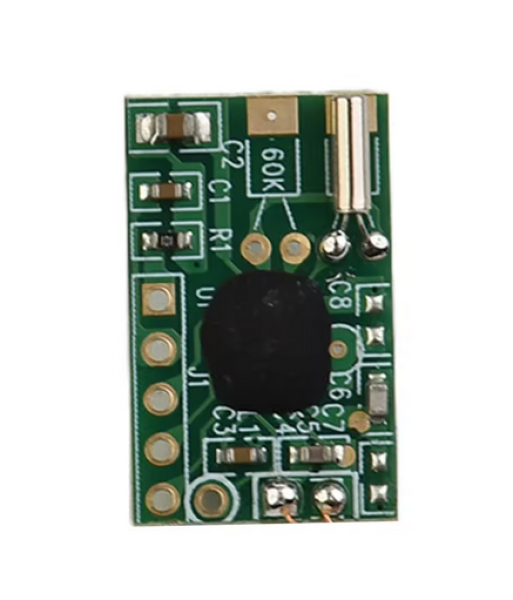

PCB size: 22.0 x 13.5 x 1.0 mm/FR4

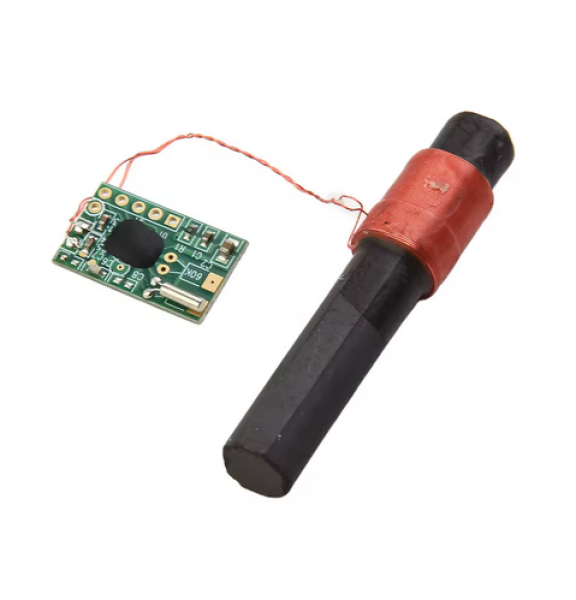

Antenna size: 10 x 60 mm/High Q (Item shotech: 001676)
Nominal frequency: 77.5 kHz ± 300 Hz
Sensitivity: 26 ± 2 dB
Receiver IC: MAS6181B
Operating voltage: 1.1...3.3 V
Current consumption: 85 µA max
Receiving frequency: 77.5 kHz
Board size (without antenna) LxWxH: 22 x 13.5 x 1 mm
Antenna quality: LxØ: 60 x 10 mm
Lieferung erfolgt entweder nur das Modul mit MAS6181B, oder per Option Modul und DCF77 Antenne.
DCF-77 Modul Doku V2.pdf ( update 26.01.2026 )
