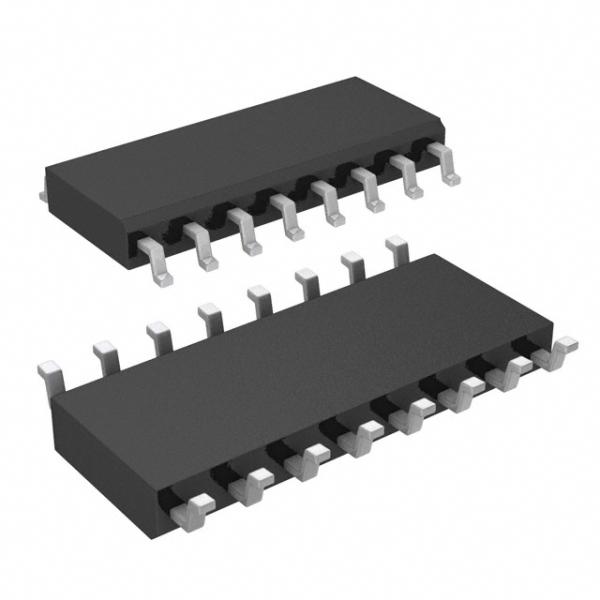

CH554G - E8051 Core MCU - USB Host/Device - SOP-16
BALD
NEU
SOLD OUT
The CH554 chip is an enhanced E8051 core microcontroller compatible with the MCS51 instruction set. Its 79% instruction is a single-byte single-cycle instruction, and the average instruction speed is 8 to 15 times faster than the standard MCS51. The CH552 supports up to 24MHz system frequency, built-in 16K program memory ROM and 256 bytes of internal iRAM and 1K bytes of on-chip xRAM. xRAM supports DMA direct memory access. CH554 has built-in ADC analog-to-digital conversion, touch button capacitance detection, 3 groups of timers and signal capture and PWM, dual asynchronous serial port, SPI, USB device controller and full-speed transceiver, USB type-C and
other functional modules.
Enhanced E8051 core CPU, 8-15 times faster than the standard MCS51, unique XRAM data fast copy instructions; > Built-in 16KB Code Flash, 1KB XRAM and internal 256B iRAM, 128B DataFlash, support byte mode read and write; > Built-in 2KB BootLoader, support USB and serial ISP, provide ISP download library; > Built-in USB controller and USB transceiver, support USB-Device device mode, support USB type-C master-slave detection, support USB 2.0 full speed 12Mbps or low speed 1.5Mbps. Supports up to 64 bytes of data packets, built-in FIFO, and supports DMA; > Built-in USB controller and USB transceiver support USB2.0 full speed and low speed host or device mode. Supports up to 64 bytes of data packets, built-in FIFO, and supports DMA; > Provide 3 groups of timers/counters to support 2 channels of signal capture and 2 channels of PWM output; > Provide 3 groups of timers/counters to support 2 channels of signal capture and 2 channels of PWM output; > Provide 2 full-duplex asynchronous serial ports, all support high baud rate communication, UART0 is standard MCS51 serial port; > Provide 1 SPI communication interface, built-in FIFO, support Master/Slave master-slave mode; > Provides 4-channel 8-bit A/D analog-to-digital converter for voltage comparison; > Support 6-channel capacitance detection, support up to 15 touch buttons, support independent timing interrupt; > Supports 4 kinds of reset signal sources, built-in power-on reset, support software and watchdog overflow reset, optional external pin reset; > Built-in 24MHz clock source and PLL, external crystal can be supported by multiplexing GPIO pins; > Built-in 5V to 3.3V low dropout voltage regulator supports 5V or 3.3V or even 2.8V supply voltage. Support low-power sleep, support USB, UART0, UART1, SPI0 and some GPIO external wake-up; > The chip has a unique ID number built in; > SOP-16 package;
ch554.pdf
CH554-EVT.zip
other functional modules.
Enhanced E8051 core CPU, 8-15 times faster than the standard MCS51, unique XRAM data fast copy instructions; > Built-in 16KB Code Flash, 1KB XRAM and internal 256B iRAM, 128B DataFlash, support byte mode read and write; > Built-in 2KB BootLoader, support USB and serial ISP, provide ISP download library; > Built-in USB controller and USB transceiver, support USB-Device device mode, support USB type-C master-slave detection, support USB 2.0 full speed 12Mbps or low speed 1.5Mbps. Supports up to 64 bytes of data packets, built-in FIFO, and supports DMA; > Built-in USB controller and USB transceiver support USB2.0 full speed and low speed host or device mode. Supports up to 64 bytes of data packets, built-in FIFO, and supports DMA; > Provide 3 groups of timers/counters to support 2 channels of signal capture and 2 channels of PWM output; > Provide 3 groups of timers/counters to support 2 channels of signal capture and 2 channels of PWM output; > Provide 2 full-duplex asynchronous serial ports, all support high baud rate communication, UART0 is standard MCS51 serial port; > Provide 1 SPI communication interface, built-in FIFO, support Master/Slave master-slave mode; > Provides 4-channel 8-bit A/D analog-to-digital converter for voltage comparison; > Support 6-channel capacitance detection, support up to 15 touch buttons, support independent timing interrupt; > Supports 4 kinds of reset signal sources, built-in power-on reset, support software and watchdog overflow reset, optional external pin reset; > Built-in 24MHz clock source and PLL, external crystal can be supported by multiplexing GPIO pins; > Built-in 5V to 3.3V low dropout voltage regulator supports 5V or 3.3V or even 2.8V supply voltage. Support low-power sleep, support USB, UART0, UART1, SPI0 and some GPIO external wake-up; > The chip has a unique ID number built in; > SOP-16 package;
ch554.pdf CH554-EVT.zip
