74LVC1G97DW-7

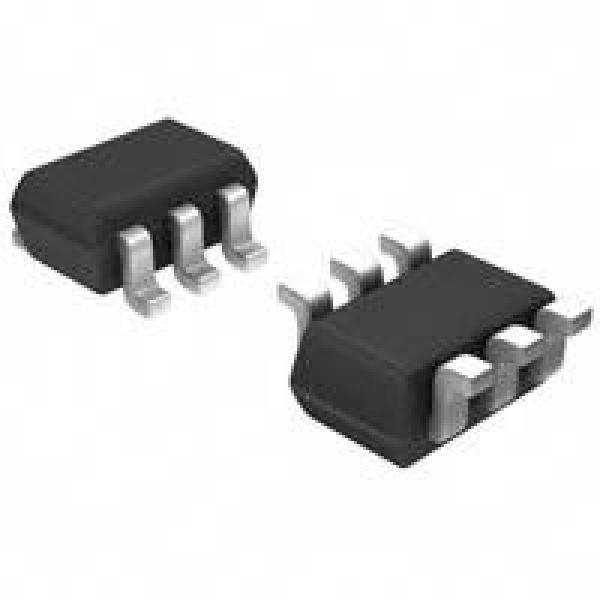

IC CONFIG MULT-FUNC GATE SOT363
± 24mA Output Drive at 3.3V
Wide Supply Voltage Range from 1.65V to 5.5V
Inputs accept up to 5.5V
ESD Protection Exceeds JESD 22
Logic Function:
2-to-1 Data Selector
2-input AND gate
2-input AND with inverted input
2-input NOR with inverted input
2-input OR
2-input NOR with both inputs inverted
1-input Inverter
74LVC1G97.pdf
± 24mA Output Drive at 3.3V
Wide Supply Voltage Range from 1.65V to 5.5V
Inputs accept up to 5.5V
ESD Protection Exceeds JESD 22
Logic Function:
2-to-1 Data Selector
2-input AND gate
2-input AND with inverted input
2-input NOR with inverted input
2-input OR
2-input NOR with both inputs inverted
1-input Inverter
74LVC1G97.pdf
