2N4351

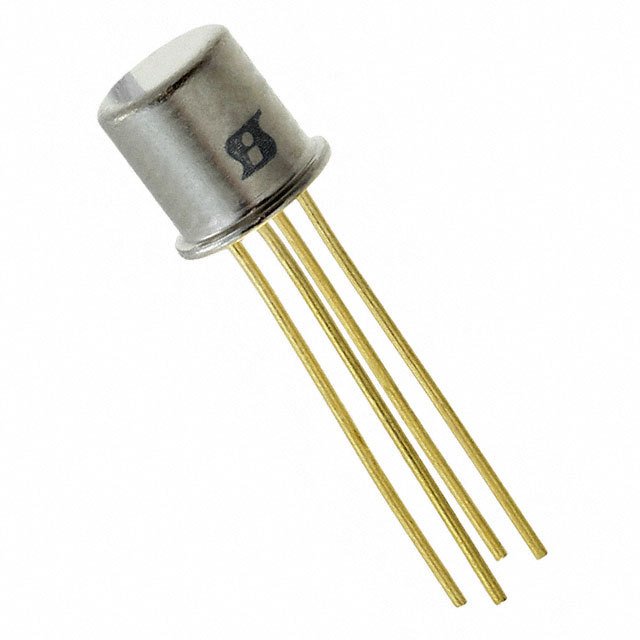

2N4351 Series 25 V 100 mA N-Ch MOSFET General Purpose Amplifier/Switch - TO-72
1. Drain-Source Voltage or Drain-Body Voltage : 25V
2. Peak Gate-Source Voltage : ±125V
3. Drain Current : 100mA
3. Storage Temperature Range : -65 ~ 200 ‘C
4. Operating Temperature Range : -55 ~ 150’C
5. Lead Temperature (Soldering, 10sec) : +300 ‘C
6. Power Dissipation : 375mW
7. Derate above 25’C : 3mW/’C
FEATURES
1. Low ON Resistance
2. Low Capacitance
3. High Gain
4. High Gate Breakdown Voltage
5. Low Threshold Voltage
