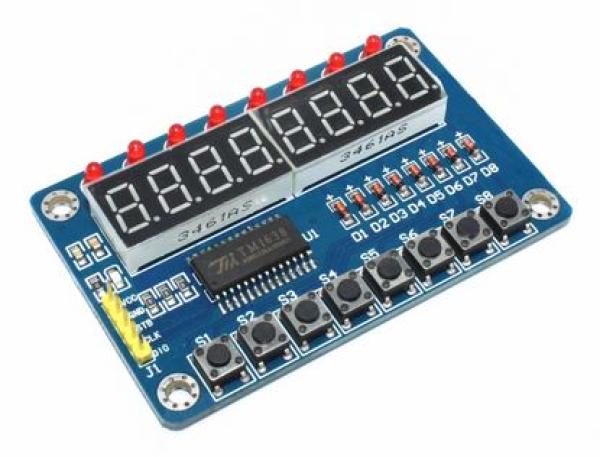

TM1638 8-Digit 7-Segments with 8-LEDs and 8-Push Buttons Module

Product No.:: 000986
Shipping time:: ca. 3-5 days (abroad may vary)
Stock:: 3 pieces
RoHS:: yes

2,65 EUR

incl. 19% tax excl. Shipping costs

Add to wish list

Ask about product

Description

Description

Features

    Compact LED Indicators, Seven Segment Display and Push Button all on one PCB
    8x LED inicators
    8x keys/push-buttons
    8x LED Seven Segment Displays
    Serial Interface requires less IO pins from Microcontroller

Technical Specifications

    Operating Voltage: 4.5V to 5.5V
    Input power: 0.24 A
    PCB Color: Blue PCB
    Segment Color : Red
    LEDs Color: Red
    Size: 75mm x 48mm/2.95″x1.89″(inch) (approx)

Pinouts

    VCC: 4.5V to 5.5V Power input
    GND: 0V Power input
    STB: Strobe Input
    Clock: Serial Data Clock Input
    DIO: Serial Data Input / Output
